NELSON AFTERMARKET

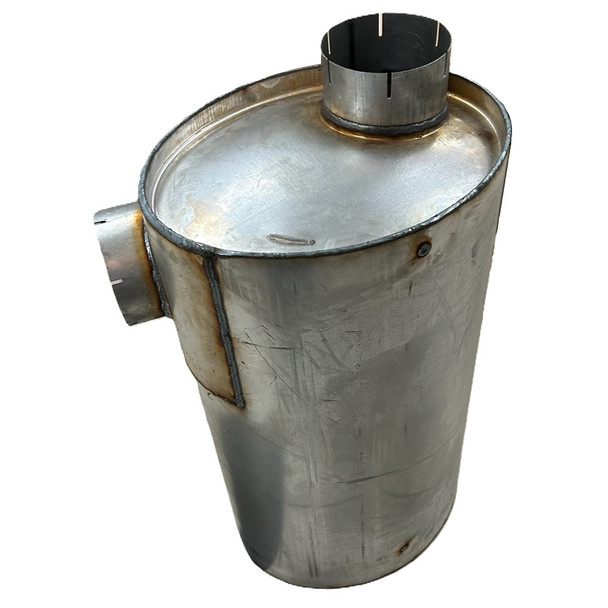

Type 5 Muffler 5" x 5" x (12.3 x 15.2") x 27" Oval 86757M

(1 review) Write a Review
SKU:
NEL86757M-10
Condition:
New
Availability:
Ships in 12 Weeks
  • 86757M 12" x 15" Oval Muffler 27" Long with 5" IN-OUT TYPE 5
  • Type 5 Muffler 5" x 5" x (12.3 x 15.2") x 27" Oval Nelson 86757M
  • Type 5 Muffler 5" x 5" x (12.3 x 15.2") x 27" Oval Nelson 86757M
YOUR PRICE $699.00

Description

86757M 12" x 15" Oval Muffler 27" Long with 5" IN-OUT TYPE 5

Description:

  • Standard Line Muffler
  • Oval Muffler
  • Muffler shell is double wall for shell noise/temperature reduction
  • Muffler is insulated for temperature/sound reduction

Cross Reference:

  • INTERNATIONAL TRUCKS 1648056C1
  • INTERNATIONAL TRUCKS 1680525C1
  • INTERNATIONAL TRUCKS 2041964C1
  • UNIVERSAL COACH PARTS 394202247
  • WALKER 21084

Dimensions:
Inlet ID (A): 5.0 inch
Outlet OD (B): 5.0 inch
Body Size (C): 12.3 x 15.2 inch
Body Length (D): 27.0 inch
Overall Length (E): 29.8 inch
Inlet Offset (F): 22.4 inch
Outlet Offset (G): 3.6 inch
Inlet Lengths (H): 3.0 inch
Inlet Clock Position: 5:30
Outlet Clock Position: 11

Max. Flow Rates
2800 @ 3" Hg
2290 @ 2" Hg

MUFFLERS - AFTERMARKET STANDARD LINE

Your entire exhaust systems purpose is to get the engine gas fumes from the engine to the outside air using many different types of exhaust pipes.

What other Nelson Aftermarket exhaust parts will I need?

Depending on your current exhaust system, you could need several nelson truck exhaust pipes to complete the job.  If you are needing to find out what OEM exhaust pipe fits your truck, you will need to call the dealer for your truck in your area and provide them with your VIN#.  We DO NOT have access to OEM VIN Lookup at this time.

How do I know what Type of Ends I need?  ID or OD?

When purchasing Nelson Exhaust Components, please make sure that you are getting the right size and have the ends figured out correctly.

    • ID = Inside Diameter
    • OD = Outside Diameter

You can think of the pipe with an ID end as being the Female end of the Pipe, and the OD ended pipe being the Male.  The OD slides inside of the ID.

Dont forget CLAMPS to complete the job.  Most any exhaust clamp will work, it just needs to be the same size diameter as the exhaust pipe you are purchasing.

Why Buy from Us?

    • Our Premium Nelson Exhaust Components are made in the USA
    • Direct Fit to OEM Aftermarket Parts
    • Fast Shipping Options
    • Excellent Quality - Great Prices!

Do you have a Catalog?

Yes.  Just Click on he catalog image below for information about our Nelson Exhaust Products


Cant find what your looking for in our Nelson Catalog?   Maybe One of our other vendors has what you need.
When you Find the parts you need, simply write down the SKU/Part Number and then come back to our site and input the numbers in our SEARCH Box.

Add products to the Cart and Check out...

It's that simple.

Shipping Information

You will see an estimate of shipping costs in your shopping cart.  Actual shipping costs will be displayed on the Invoice before you confirm your order.

The majority of our products are shipped by Federal Express.  Large and extra-long pipes require your items to be shipped by freight truck.   Shipments are based on the requirement they be made to a verified COMMERCIAL business address

If you choose to have deliveries made to a home/residence, be advised that the cost to do so more than doubles the cost of delivery to a verified business address.

If you have a large order, please EMAIL US in advance so we work with you to determine your options for optimal delivery charges.

Restocking Fee: Eligible returns are subject to a 20% restocking fee.  You will need to obtain a Return Merchandise Authorization (RMA).  Items must be in the exact same condition as they were when sent.  They could be refused if they have signs of installation or any scratches.

Thanks for shopping with us!!

View AllClose

Warranty Information

YES, SEE WARRANTY PAGE ABOVE
View AllClose

Additional Information

WALKER:
21084
INTERNATIONAL:
1648056C1,1680525C1,2041964C1
UNIVERSAL COACH PARTS:
394202247
View AllClose

1 Review

  • 5
    TYPE 5 MUFFLER

    Posted by LUKE on Nov 18th 2020

    WE WERE VERY PLEASED TO USE THIS PRODUCT. ALSO AMAZED AT THE SERVICE TO GET IT MADE ,IN ATIMELY FASHION AND AT THE ORIGINAL PRICE. THANK YOU, WE WILL SHOP WITH YOU AGAIN
